Atlantic shear 1/2" x 10' cnc back gauge

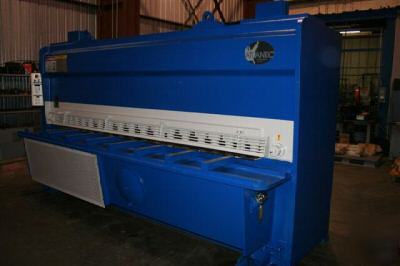

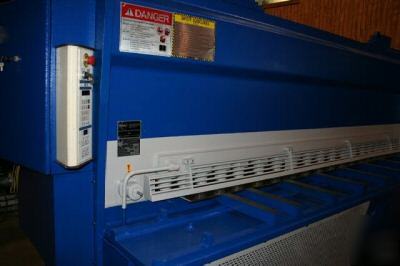

Atlantic 1/2" x 10' CNC Hydraulic Shear 1996
This Shear is rated at 1/2" at a PSI Yield of 80,000.00
That means if your doing standard 60,000 mild steel you can shear 5/8" or 5/16" stainless
SC 5 Controller ( 8 programs-80 steps) programmed for mild steel
40" support arm with scale and stop

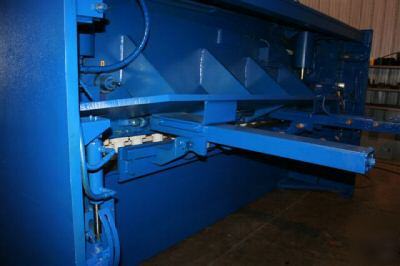

Standard motorized backgauge of 39".
Hydraulic sheet hold downs on seperate hydraulic circuit for better pressure control.
Standard 40" squaring arm with scale and tilting front stop.
Cutting capacities rated for steel with 62,000 PSI tensile strenght.
Programmable rake angle with the new SP8 control
Quick manual blade clearance setting with leveler
Setup, installation and training by factory trained engineers, nationwide.
