55 ton edwards hydraulic ironworker/punch/shear/notch

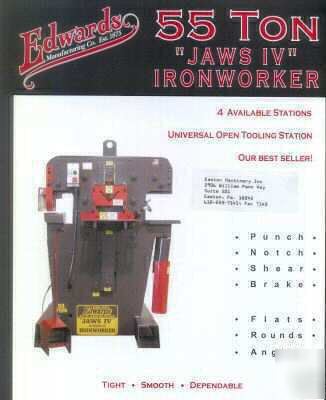

New Edwards Hydraulic 55 Ton Jaws IV Ironworker Equipped with All standard Features: 1 YEAR WARRANTY/ Hydraulics Fully Charged/ Sound Insulated/Direct Drive /Max.Size punch 1-1/16" dia./Cplg Wrench/Slat Shear blades Installed-Low rake/Angle shear blades Installed/Fully Gaurded/Adjustabke Steel Punch Strippers/Flat Adjusting Holddown Bars/Threaded Holes in Tables for Jigs/Pipe Clpg Welded to back side of unit for optional back gauge/Slots for gauging feed tables/Remote Foot pedal/IntegalLifting Lug for portablility : Specifications: Punching rated capacity 55 tons/Throat dept 7"/ Flat Bar Shearing: max width:1/2" x 12" in 5/8" plate/Max. thickness 3/4" x 4"/Max Round:1-1/8"/Max. Square 1-1/8"/Angle shearing max size:4" x 4" x 1/4/3" x 3" x 3 INCLUDES STARTER PUNCH & DIE SET (8 sets) 3/16" to 1-1/16" a $236.00 Value !
EDWARD'S IRON WORKERS ARE 100 % MADE IN THE THE USA ,THE MOST TON'S PER DOLLAR !!!!
GENERAL SPecifications: Open Height 8-1/8": * Shut Height 6-1/8" * Stroke 1-1/4"*Cycle Time 1/2" x 2" -2-seconds *Motor-3HP 208/240/3/60 3450 RPM * Hyd. Pump 11 gpm/2-stage,hyd Reservoir:10 ga.*Weight:2250 lbs* Dimensions 41-1/2" x 40" x 57"H
SINGLE PHASE REQUIRED : ADD $275.00 FOR UPGRADE COST ! DELIVERY Should not change ! Our stock machines are ordered with 208/240/ 3 phase electrics: 440/3/60 upgrade cost: Add; $120.00
"OPTIONAL ACCESSORIES AVAILABLE ON ORIGINAL EQUIPMENT"
1. Stroke Limiter: LIST PRICE $222.00 - YOU PAY :$199.00
2. Greaseless Slides: LIST PRICE :$240.00 - YOU PAY: $216.00
3. Quick Change punch coupling:LIST PRICE: $479.00-YOU PAY: 383.00
TOOLING ACCESSORIES ( see option photo)
1. Coper Notcher Table/Baldes: LIST PRICE $779.00 -YOU PAY:$700.00
2. Brake w/ 4-way Die,/1/16",1/8",3/16",1/4": LIST PRICE:$821.00 (10") YOU PAY:$739.00
3. Oversize Assembly to 9/16": LIST PRICE: $448.00 -YOU PAY:$405.00
4. Back Gauge -up to 48": LIST PRICE $179.00 -YOU PAY$162.00
5. Mag. Sq. Arm: LIST PRICE: $56.00 -YOU PAY$ 50.00
6. Multi-Shear : LIST PRICE $706.00 Angle: 2" x 2" x 1/4" Bar 1/4" x 6"/ Rod 1/4",3/8",1/2",5/8",3/4"/Square 13/16" - -YOU PAY:$636.00
7. Pedestal Die Table-Std to 1-1/16": Add$302.00(Oversize Table to 1-9/16" LIST PRICE $358.00 -YOU PAY: $323.00
8. Pipe Notcher Housing: LIST PRICE: $269.00 -YOU PAY: $245.00
9. 1/2" pipe Notching Die: List Price: $302.00 -YOU PAY: $275.00
10. 3/4" Pipe Notching Die: LIST PRICE $325.00-YOU PAY:$295.00
11. 1" Pipe Notching Die: LIST PRICE $347.00 -YOU PAY: $315.00
12. 1-1/4" Pipe Notching Die: LIST PRICE: $370.00 -YOU PAY $335.00
13. 1-1/2" Pipe Notching Die: LIST PRICE:$392.00 -YOU PAY:$355.00
14. 2" Pipe Notching Die: LIST PRICE: $414.00 -YOU PAY$375.00
15. Rod Shear & Housing: LIST PRICE $980.00 (1/4,3/8",1/2",5/8",3/4",1") YOU PAY-$885.00
16. Urethene Stripper assembly: LIST PRICE $420.00-YOU PAY:$380.00
17. VEE Notcher : LIST PRICE $840.00 (3" x 3" x 1/4")-YOU PAY$760.00
FREIGHT RATES AVAILABLE ON REQUEST NEED CITY & ZIP, ADDITIONAL TOOLING AVAILABLE PRICING ON REQUEST:
" List Price is $6,596.00 STD MACHINE " (No Options! )
DELIVERY : 20-30 Days, Stock orders are placed with factory, Machines are subject to prior sale.
" ELECTRONIC STROKE CONTROL INSTALLED NO CHARGE"
"EDWARDS IRONWORKERS ARE OUR PRIMARY IRONWORKER"
"ALL DELIVERIES CONFIRMED AT TIME OF ORDER"
NOTE: HAVE A QUESTION ? GIVES US AN EMAIL !
NOTE: F.O.B. Easton,Pa. or other locations . NOTE stock machines are subject to prior sale.Pricing does not include freight charges.If you have a question,please contact our office.
NOTE: PRICING TO REFLECT OUR "PRICE BUSTER SPECIALS". REMEMBER TO PURCHASE YOUR NEW OR USED EQUIPMENT NEEDS FROM A MDNA MEMBER. (MACHINERY DEALERS NATIONAL ASSOCIATION MEMBER) TO LOCATE YOUR LOCAL MDNA DEALER CHECK THE WEB:WWW.MDNA.ORG
PHILADELPHIA CHAPTER MEMBER (MDNA)
