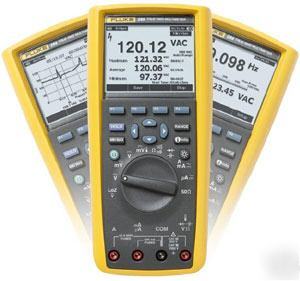

Fluke 289 true-rms multimeter with trendcapture
Brand New Fluke 289 New In Box
NEW Fluke 289 VIP Digital Multimeter
True-RMS Industrial logging multimeter with TrendCapture!
The Fluke 289 is the next generation high performance multimeter designed to meet the challenges of today’s Industrial and field service professionals involved in the installation, maintenance or support of facilities or critical systems. The Fluke 289 comes with a built-in data logger to record measurements unattended. Recorded data can be viewed on the meter in TrendCapture or transferred to a PC with optional FlukeView Forms Software. The Fluke 289 is Fluke’s best, combining advanced features with a True-RMS 50,000-count VGA dot matrix display! Limited lifetime warranty!
FLUKE 289 Key Features Include!
* 50,000 Count, 320 x 240 Dot Matrix LCD Display with White Backlight
* Multiple Sets of Measurement Information are Now Available in this Easy to Read Display
* Logging Function with TrendCapture Plots Measurements as Single Line to Help Detect Anomalies
* Internal Memory Allows Stand-alone Logging for Up to 180 Hours
* Optical USB PC Communication Interface Allows for Easy PC Download to Document Logged Data with FVF Software (not included)
* LoZ: Low Input Impedance Function Helps Prevents False Readings Due to “Ghost Voltage†(Fluke 289 Only)
* 50 Ohm Range for Motor Winding and Low Ohm Measurements (Fluke 289 Only)
* Low Pass Filter, Allows for Accurate Measurements on Motor Drives
* F1 - F4 Soft keys Provide Flexible User Function Menus
* True-rms AC Voltage and Current for Accurate Measurements on Complex Signals or Non Linear Loads. AC Bandwidth Specified to 100 kHz
* Current Measurement 20A (30 seconds momentary; 10A continuous)
* Peak Capture to Record Transients as Fast as 250 μs
* Continuity/Conductance/Capacitance/Resistance and Continuity
* Min/Max/Average with Time Stamp to Record Signal Fluctuations
* Compatible with Optional Magnetic Hanger (ToolPak) for Hands Free Operation
* CAT III 1000 V / CAT IV 600 V Safety Rated
* 289/287 standard accessories (included with purchase)
* CD-ROM (user manual & technical notes)
50.000 mV,500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0V
50.000 mV,500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0V
500.00 µA, 5000.0 µA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A
500.00 µA, 5000.0 µA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A
-200.0 °C to 1350.0 °C (-328.0 °F to 2462.0 °F)
500.00 Ω, 5.0000 kΩ, 50.000 kΩ, 500.00 kΩ, 5.0000 MΩ, 50.00 MΩ, 500.0 MΩ
Resistance 10 50 Ω (2 wire connection)
1.000 nF,10.00 nF 100.0 nF, 1.000 µF, 10.00 µF, 100.0 µF, 1000 µF, 10.00 mF, 100.00 mF Ω
99.999 Hz, 999.99 Hz, 9.9999 kHz, 99.999 kHz, 999.99 kHz
0.025 ms, 0.25 ms, 2.5 ms, 1250.0 ms
0.001 Ω to 50.000 Ω 10 mA source
Random vibration per MIL-PRF-28800f Class 2
1 meter drop per IEC/EN 61010-1 2nd edition
CAT III 1000 V / CAT IV 600 V safety rated
Mechanical & General Specifications
Maximum voltage between any terminal and earth ground
(HxWxL 22.2 cm x 10.2 cm x 6 cm (8.75 in x 4.03 in x 2.38 in)
100 minimum, 200 hours in logging mode
6 AA alkaline batteries, NEDA 15A IEC LR6
