Gigatronics 8541C - front inputs

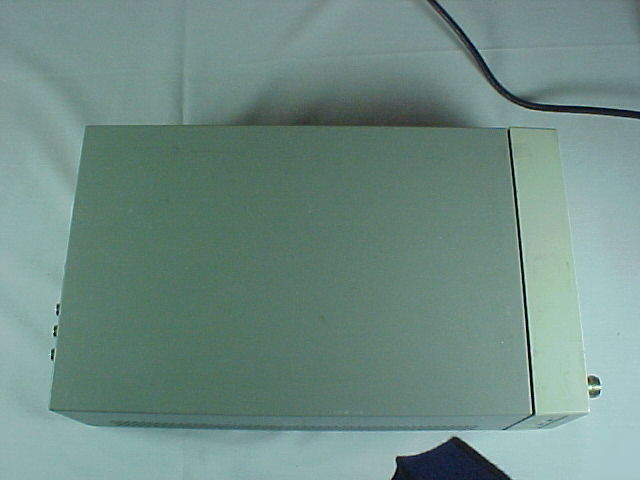

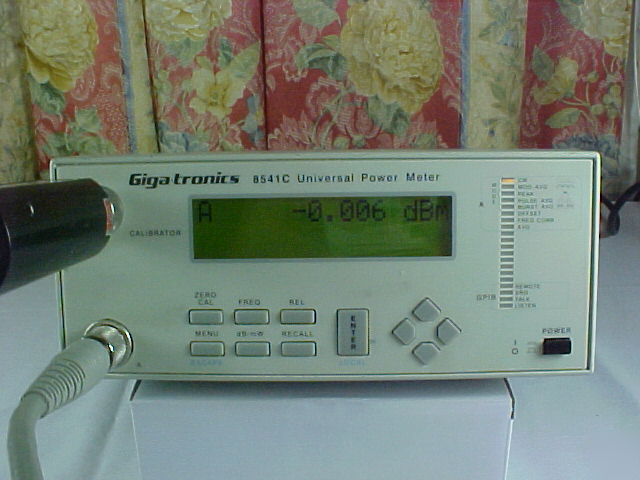

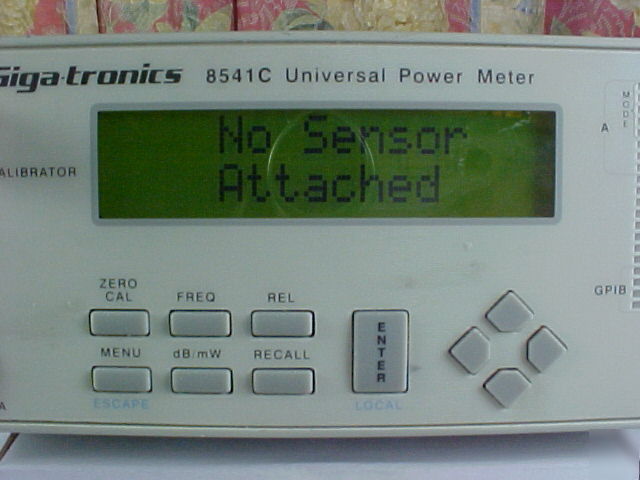

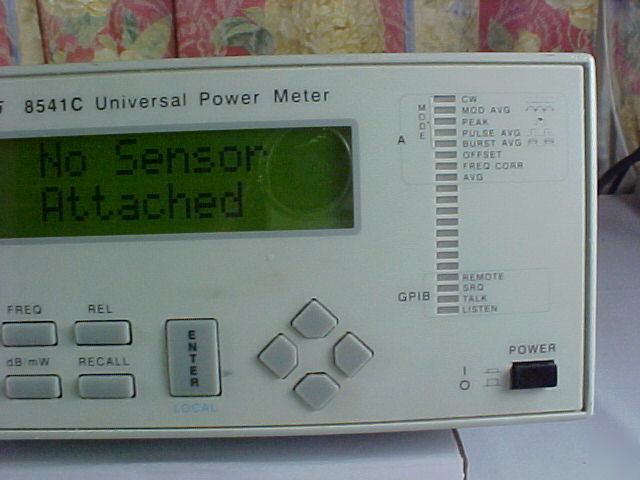

This is a used power meter in good condition from Gigatronics.
8540C / 8541C / 8542C : Universal Power Meter
The Giga-tronics 8540C Series Universal Power Meters combine accuracy, speed, range and measurement capabilities unavailable from any other power meter.
Built-in features such as power sweep calibration and frequency calibration factors provide an unequaled degree of measurement accuracy. Only the 8540C Series Power Meters have the speed and range to meet the throughput demands of high-volume manufacturing. And the meters can measure the CW, peak and true average power of the complex modulated signals used in EW, radar and communication systems.
* Frequency Range 100 kHz to 40 GHz, depending on sensor used
* Power Range: -70 to +47 dBm, depending on sensor used
* Choose from an extensive line of CW, Peak, Modulation and True RMS sensors
* Single Sensor Dynamic Range:
* CW Power Sensors: 90 dB (-70 to +20 dBm)
* Modulation Power Sensors: 87 dB CW, 60 to 80 dB Modulation Mode
* Peak Power Sensors: 50 dB CW, 47 dB Peak
* Automatically measure average power of TDMA, GSM, and CDMA signals
* Optional Time Gating to program a measurement's start time and duration
* Achieve 500 reading per second over GPIB
* Use the Fast Buffered Mode to capture up to 4000 readings per second
* Measure the instantaneous peak power level of a pulse modulated signal
CW Power Sensor Selection Guide
True RMS Sensors (-30 to +20 dBm)
Precision CW Return Loss Bridges
Peak Power Sensor Selection Guide
If you have any questions please ask.
