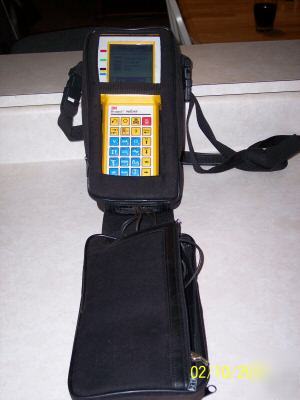

Dynatel 965DSP w/ tdr
Specifications for 965DSP Subscriber Loop Analyzer Auto Test to aid in identifyng-solving problem, TDR Single and Dual Trace 3-30,000 ft, Send and receive 1200 kHz Tone, Load coil count 0-4, Measures voltage 0-250 VAC, 0-300 VDC, Current 0-110 mA DC, Resistance 0-990 mega ohms, Opens 0-100 k feet, RFL 0-20 mega ohms, Loss (& Frequency @ 600 ohms ZIN) -40 to +10 dBm 200 Hz-19.9 kHz, Wideband loss(@ 135 ohms ZIN) -40 to +10 dBm, 20 k-200 kHz, ISDN 40 kHz, Tone output (@ 600 ohms ZIN) 200 Hz-19.95 kHz , Caller ID Date-time-number-name, Longitudinal balance 62 to 40 dB, Noise metallic 0 to 50 dBr nc, Noise to ground 40 to 100 dBrnc, Dial mode DTMF or Pulse, 1.2 amp-hour NiMH battery pack, 50% duty cycle-12 hours no backlight-4 hours with,
Size H x W x D in. 10.0 x 4.0 x 2.5 , Cord length ft. 5, Net weight lbs. 3.3, Operating temperature 0° to 140°F , Storage temperature -40° to 165°F, Relative humidity 0 to 95%, non-condensing, Operating altitude 0 to 16,600 can .
