Electric field probe hameg spectrum analyzer
GR: PRBEFPSPCTRMANAB PRBHIPSPCTRMANAB PRBMFPSPCTRMANAB

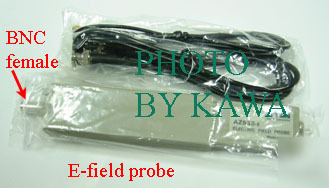

Picture 1 Electric Field Probe for SPECTRUM ANALYZER
(Batteries or Ni-Cads are not included)
Offered here is ONE (1 piece) of New excellent quality Electric Field Probe for HAMEG SPECTRUM ANALYZER - FREQUENCY SCANNER. Compatible with HZ530
Electric field monopole probe is extremely sensitive. Its high sensitivity is enough to act as an antenna to receive radio broadcast or TV signal. It can carry out testing upon the radiation of a circuit or the whole equipment.
For example, is it effective with the probe to determine the shield? With this probe, it can test the effectiveness of RFI filter. These RFIs are produced along the cable out of equipment. They affect the whole transmission indexes, how about after connecting a filter? In addition, E field probe can be used for a relative measurement of the compliance testing. So it is easier when make a certification testing.
If you combine the above Electric Field Probe with the following which we sell separately (click on the icon),
the combination forms an ideal toolkit for the investigation of RF electromagnetic fields. They are indispensable for EMI pre-compliance testing during product development, prior to third party testing. All our 3 hand-held probes comes with a built-in pre-amplifier covering the frequency range from 100 kHz to over 1000 MHz. The probes - one magnetic field probe, one electric field probe, and one high impedance probe - are all matched to the 50W inputs of spectrum analyzers or RF-receivers. The power can be supplied either from batteries, Ni-Cads or through a power cord directly connected to a HAMEG HM5005 (HM-5005)/HM5006 (HM-5006)/HM5010 (HM-5010)/HM5011 (HM-5011)/HM5012 (HM-5012)/HM5014 (HM-5014) series spectrum analyzer.
Signal feed is via a 1.5m BNC-cable. When used in conjunction with a spectrum analyzer or a measuring receiver, the probes can be used to locate and qualify EMI sources, as well as evaluate EMC problems at the breadboard and prototype level. They enable the user to evaluate radiated fields and perform shield effectiveness comparisons. Mechanical screening performance and immunity tests on cables and components are easily performed.
