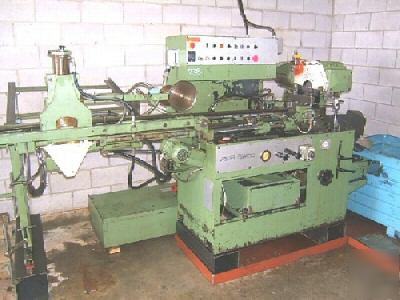

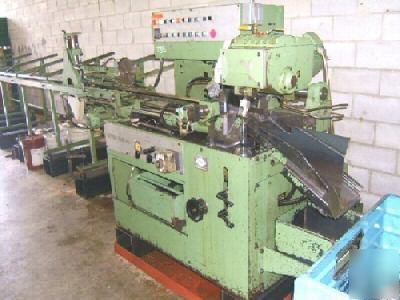

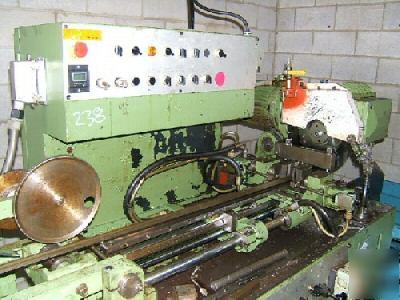

Adige sala automatic saw with gravity magazine (20035)
ADIGE CM-500A, 1991,Automatic with Gravity Loading Magzine.3.55" Round Our stock number: 20035
MODEL NUMBER..................................CM-500A
SERIAL NUMBER.................................91052716
Cutting Capacity..............................3.55" Round 2.36" Square
Gravity Load Capacity.........................20 Foot
Sawblade Dimensions...........................315mm (12-1/2") with 32mm
Trim Cut......................................1-3/8"
Cut Length....................................19-1/2" Single Stroke/39"
Minimum Remnant Length........................2-3/4"
Drive Motor...................................4 HP
Maximum Installed Power.......................9.5 HP
Sawblade Speeds...............................9-11-14-18-22-28-36-45 m/min.
Coolant Capacity..............................13.2 Gallon
Hydraulic Tank................................52 Gallon (Shell Tellus 25
Dimensions....................................21 Ft. Long x 4.5 Ft. Wide
Weight........................................4410 Lbs.
Inclined Magazine Rack for Continuous Feed to the Saw
Hydraulic Clamping Pressuer is Adjustable from 770 Ls. to 3700 Lbs.
Wide Range of Geared Speeds for Cutting a Variety of Materials
Adjustable Stroke of Cutting Head
Infinitely Variable Feed Rate From 0-165" Per Minute
All items are sold SPECIFICATIONS SUBJECT TO VERIFICATIONS.
All items are offered locally and could be sold previous to end of store listing.
**Skids shown in pictures are not included with the item. **
**All items requiring a skid will have an additional skidding fee added to the items final purchase price. Skidding fees range from a minimum of $50.00 +. **
**We will load on a flat bed, open truck or trailer free of charge.**
We thank you in advance for your interest in this item. Please feel free to call or e-mail us with any questions or other machinery requirements. Our toll-free number in the U.S. (***)-745-6008 or (***)-542-8400 e-mail address is ****@cwwood.com
