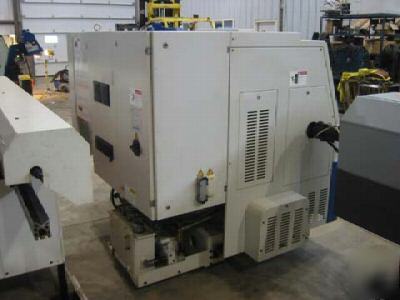

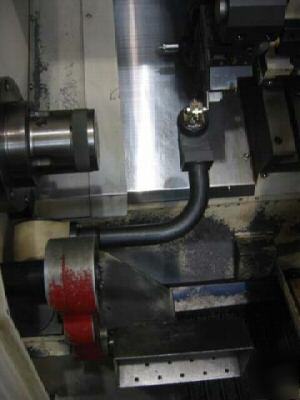

Daewoo, lynx 210A, 2004, cnc lathe turning center

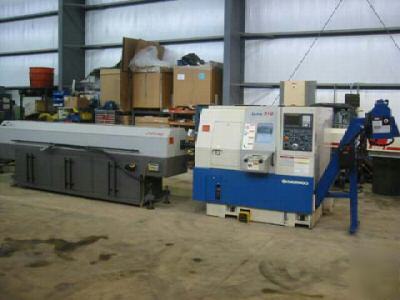

CNC Lathe Turning Center w/ Cyclone Barfeeder
Max Diameter Bar Capacity: 1.75"
Max Swing Over Bed / Carriage: 20.1" / 11.4"
Rapid Traverse Rates (X/Z): 1,181 / 1,417 IPM

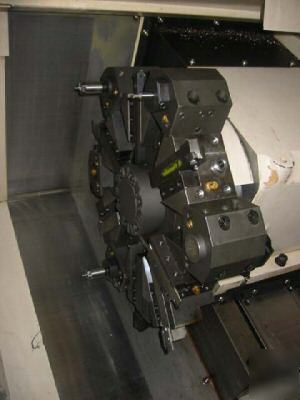

Turret Index (Single Step): 0.12 Seconds
Machine Dimensions (L x W x H): 101" x 63" x 65"
Capacity (dia): 1/4" to 1-5/8"
Capacity (length): 12' 1-1/4" (max)

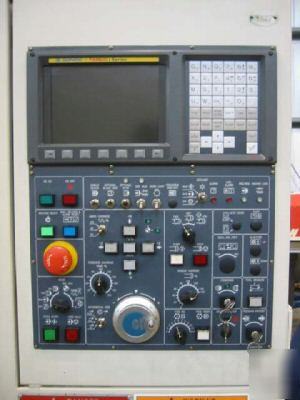

Operator Interface: Hand held portable programmer, NEMA 4, 12 rated
Bar Rack Loading: Front or rear available
Loader Position: Left or right side
Oil Capacity and Viscosity: 110 L, 68 cSt @ 40 deg. C (ISO VG 68)
Compressed Air Supply: 6 Bar (80 - 90 psi)
Operating Voltage and Power: 220 VAC, 1 phase, 50/60 Hz, 600W (0.8 hp)
Pusher Drive System: Radial piston air motor
This machine is currently stored indoors in our Benton Harbor MI warehouse.
Loading is included in the price.
*Preliminary Specifications Subject to Verification.
