Savage abrasive saw, no. sg-150, 50 hp, clean (20243)


26", SAVAGE, No. SG-150, Ferrous, 8" Dia. Cap., Oscillating, Hyd. Infeed, 50 HP
SERIAL NUMBER: SG150-91S-378 Year: 1991
"The Model SG-150 saw is a horizontal stroke machine equipped with spindle oscillation. This machine has been designed to cut ferrous materials up to 8" in diameter. A 50 HP motor is used to rotate a 26" diameter blade. The spindle speed and surface feed are both variable quantities."
Cutting Application: Ferrous Materials
Cutting Capacity: 1-1/2" to 8" Diameter

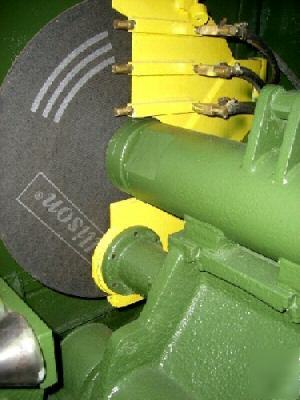

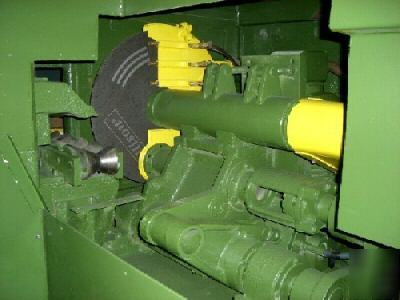

Spindle Oscillation: "Spindle oscillation is the technique of allowing the spindle to fluctuate back and forth in short strokes across the cut in an approximate horizontal plane as the swing arm is fed downward. This horizontal movement offers greater cutting capacity by reducing the arc of contact between the blade and the workpiece. This reduction of contact enables the machine to cut faster because the reduced arc of contact offers less resisitance to the blade. This reduction provides for longer life of the blade."
Hydraulic System, 15 HP Hydraulic Unit
Recirculating Coolant System, 1-1/2 HP Coolant Pump Motor

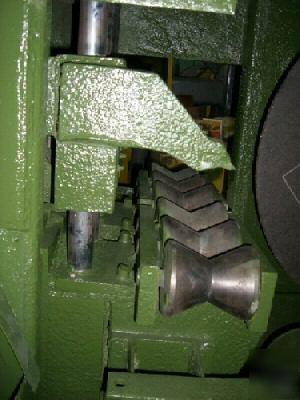

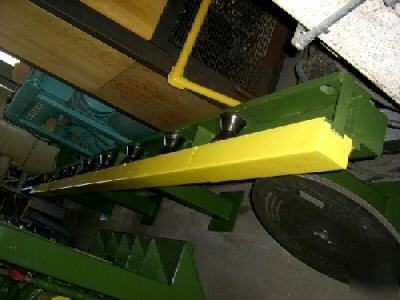

Material Clamping System Including Infeed Conveyor

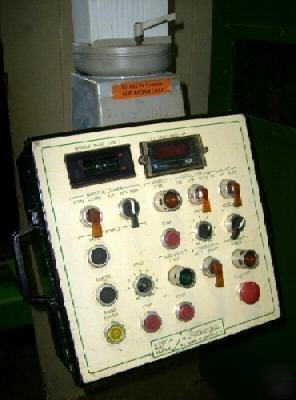

Electrical Control Panel, Including The Following:
*Spindle Raise/Lower Push Buttons, Rapid Lower Push Button
*Oscillator On/Off/Auto Selector Switch
*Coolant On/Off/Auto Selector Switch
*Conveyor Left/Right Selector Switch
*Material Clamps Selector Switch
*Spindle Start/Stop Push Buttons
*Auto Cycle Start/Stop Push Buttons
*Spindle Raise Time Thumbwheel Switch
Operation and Maintenance Manual
All items are sold SPECIFICATIONS SUBJECT TO VERIFICATIONS.
All items are offered locally and could be sold previous to end of store listing.
**Skids shown in pictures are not included with the item. **
**All items requiring a skid will have an additional skidding fee added to the items final purchase price. Skidding fees range from a minimum of $50.00 +. **
**We will load on a flat bed, open truck or trailer free of charge.**
We thank you in advance for your interest in this item. Please feel free to call or e-mail us with any questions or other machinery requirements. Our toll-free number in the U.S. (***)-745-6008 or (***)-542-8400 e-mail address is ****@cwwood.com
