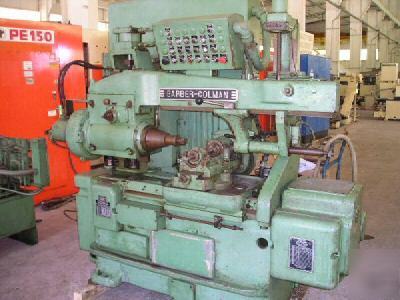

#16-16 barber colman "multicycle" horiz gear hobber
#16-16 BARBER COLMAN "MULTICYCLE" HORIZONTAL
New 1971, Serial No. 4359M Model 16-16 "Multicycle"
Standard Hobslide (+/- 45 Degrees Swivel)
Anti-Friction Hob & Work Spindle Bearings
One (1) Hob Arbor (.75" Diameter)
One Single Set-Up Of Change Gears
Work Spindle W/Adaptor And Arbor
Hydraulically Actuated Adjustable Lever-Type
Power Rapid Traverse For Hob Carriage
Automatic Square Cycle With Plunge Feed
Complete Coolant System, Pump Tank & Piping
Full Complement Of Electrics (Motors/Controls)
Operator's Manual, Parts List, Wiring Diagram
Maximum Rated Diameteral Pitch (Nom)... 6 DP(4.2 module)
Maximum Rated Diameter Of Work......... 16"(406mm)
Maximum Hob Diameter................... 5"(127mm)
Maximum Hob-Slide Travel............... 16"(406mm)
Maximum Work Slide Travel.............. 8"(203.2mm)
Maximum Dist, Work Spindle Centerline To
Hob Spindle Centerline................. 8.75"(222mm)
Minimum Dist, Work Spindle Centerline To
Hob Spindle Centerline................. .75"(19.05mm)
Maximum Dist Work Spindle Face
To Tailstock-Center.................... 44"(1117mm)
Work Spindle Thru-Bore Dia............. 4.13"(105mm)
Hob speed range........................ 59 to 425 RPM
Feed Ranges............................ .015-.150 IPR
Main Drive Motor....................... 5 HP/1800 RPM
Rapid Traverse......................... 2 HP
Coolant Pump........................... 1/4 HP
Lubrication Pump....................... 1/20 HP
Floor Space Required................... 90"x 82"(2267x2082mm)
Machine Overall Height................. 84"(2134mm)
Machine Net Weight (Approx)............ 7,600 lbs.(3628 kGs)
NOTESL Suitable For The Cutting Of Spur/Helical
Gears, Pinions, Splines, & Other Workpieces Of
Similar Profile Up To 16"(400mm) Pitch Diameter,
PRICE: F.O.B. OUR WAREHOUSE........... $24,500.00
All machines/equipment subject to prior sale.
