1998 hardinge hlv h precision toolroom lathe excellent
The Hardinge HLV Toolroom Lathe sets the benchmark for high-quality toolroom turning.
The Super-Precision® HLV Toolroom Lathe is versatile enough to produce a wide variety of parts with super-precise tolerances and fine surface finishes. The HLV features an inch and metric gearbox for precise, single-point thread cutting. Its dovetail design of the hand-scraped, full-bearing carriage and the bedways provides maximum tool rigidity for optimum accuracy. Independent, variable electric feeds permit multiple operations and on-the-spot rate changes with no waste of production time. The Hardinge pre-loaded spindle ensures maximum rigidity and sustained accuracy, eliminating end play and radial play, for truer turning.
The HLV also includes: a fast and easy lever-operated collet closer for positive workpiece gripping; a tailstock body of one-piece construction, featuring a hardened and precision ground #2 MT spindle; dual dials (on the tailstock and compound slide) to eliminate the need to switch back and forth between inch and millimeter increments.

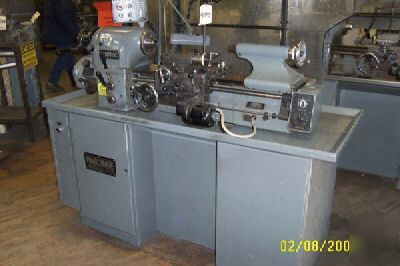

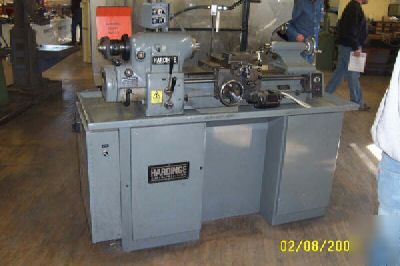

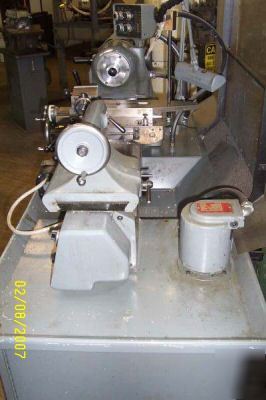

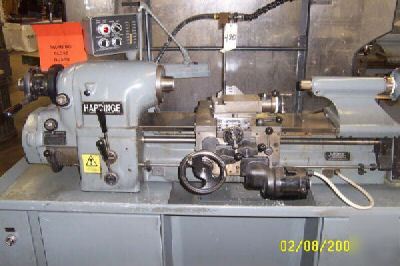

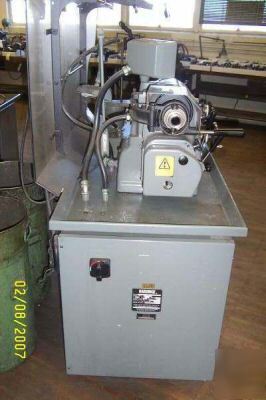

Excellent condition Hardinge HLV-H lathe
This is a one owner machine that came from a tool room for a plastic pen mfg company.
It has not been shined or repainted it is in perfect original condition.
Comes with operator manual and tapper attachment , 3 jaw chuck, face plate and collets
This new of year HLV-H lathe is hard to find don't miss out.
Outstanding bargain compare to new price.
HARDINGE PRECISION TOOL ROOM LATHE,

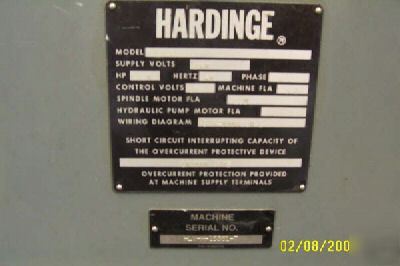

MODEL HLV-H, S/N: HLV-H-15361-T, NEW 1998
SPINDLE CONSTRUCTION ................. HARDINGE BALL BEARING
SPINDLE NOSE ......................... HARDINGE TAPER
WITH ROUND TYPE 5C COLLETS ..... 1-1/16"
WITH STEP CHUCKS ............... 1-1/16" TO 6"
WITH JAW CHUCKS ................ 5"
WITH EXPANDING COLLETS ......... 3"
VARIABLE SPINDLE SPEEDS .............. 125 - 3,000 R.P.M.
HOLE THROUGH SPINDLE ................. 1-1/4"
SWING OVER BED ....................... 11"
SWING OVER CARRIAGE .................. 9"
SWING OVER CROSS SLIDE ............... 6"
DISTANCE BETWEEN CENTERS ............. 18"
COMPOUND SLIDE TRAVEL ................ 3"
CARRIAGE POWER FEED RANGE ............ 5/16 - 7 I.P.M.
CROSS SLIDE POWER FEED RANGE ......... 3/16 - 4 I.P.M.
TAILSTOCK SPINDLE DIAMETER ........... 1-3/8"
TAILSTOCK SPINDLE TAPER .............. #2 MT
INCH THREADING RANGE IN GEARBOX (36) . 11 - 108 T.P.I.
currently 460 3 phase can be set for 230 3 phase
Motor info =MAGNETEK IND. MOTOR
APPROXIMATE WEIGHT ................... 1,700 LBS.
* SOLID FULL BEARING TAILSTOCK
