Industrial indexing system delta ds-50/rak motor drive
Delta Series Electric Motor Drive Inverter

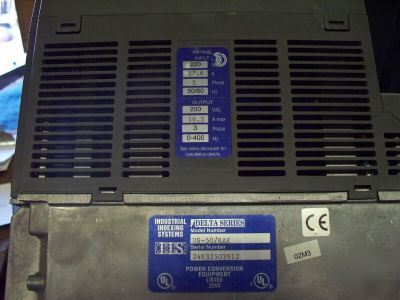

Input: 220VAC, 17.6A, 3 Phase, 50/60Hz
Output: 200VAC, 16.3A Max, 3 Phase, 0-400Hz

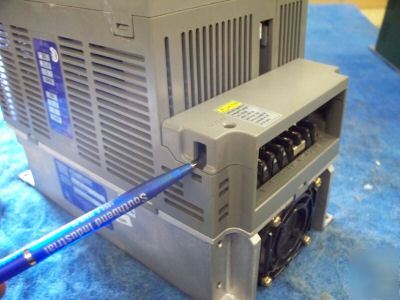

Condition: Used, good condition, pulled from working equipment. There is a small latch broken on left side of wiring cover as shown in picture, does not effect unit function.
Please See IIS' website and PDF Link below for more information and specs
THE INFO BELOW IS FROM IIS' WEBSITE ( ):
The small, lightweight Delta Drivers combine the latest in all-digital electronic design, SMT circuit board construction and clever engineering to deliver high performance, advanced features and resonable cost. Compact, high power density motors provide low rotor inertia, making them the logical choice for positioning and indexing applications.
Delta Drivers hadve a wide array of features, including a powerful embedded high speed 32-bit RISC processor, membrane keypad, high visibility 5-digit LED display, built-in RS-232 port, 8 optically isolated inputs, 8 optically isolated outputs, S-curve profiling, auto servo tuning, fault history log and many more. Dozens of operational parameters can be programmed, either through the front panel or using your IBM compatible computer. And the PC software allows quick set-up, a full range of diagnostics and PC oscilloscope functions to display speed and current waveforms on your computer.
Table of Contents & List of Illustrations, 10 pages
Section 02, Driver Specifications, 10 pages
Section 03, Programming The Delta Driver, 16 pages
Section 04, Driver Operation Modes, 74 pages
Section 05, Power Wiring, 10 pages
Section 06, Driver Tuning, 4 pages
Section 07, Regen Resistor Selection, 14 pages
Section 08, Dynamic Brakes, 4 pages
Section 09, Mechanical Brakes, 12 pages
Section 10, Alarm Codes, 4 pages
Section 11, Connecting a Delta Driver to an Ext Position Ctrl, 2 pages
Section 12, EMC Installation Guidelines, 8 pages
Section 13, Application Notes, 6 pages
Appendix A, Motor Drive Specifications, 228 pages
Appendix B, Cables & Accessories, 82 pages
