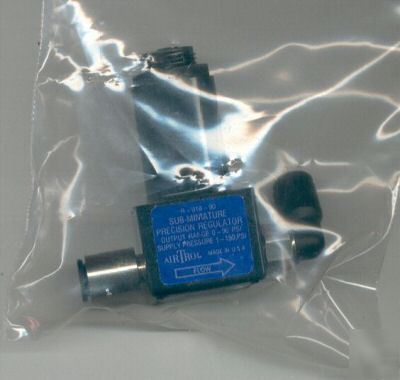

New airtrol R900 pressure regulator r-910-90
Airtrol R-910-90 Sub minature pressure regulator, output range 0-90 PSI, Supply pressure 1-150 PSI.
The R-900 Series regulators are designed for applications requiring miniature size, light weight, and precision. 10-32 ports accommodate a wide range of miniature fittings, including Airtrol Components B-062 and B-125 barbed fittings.
Twenty turn hysteresis free adjustment allows pressure settings to 1" WC resolution.
Four adjusting styles allow maximum design flexibility. The non-rising stem is available with an attractive knob, or plain, allowing installation of OEM knobs. Also available is a flush adjusting shaft, for applications where pressure setting is changed less frequently. Factory pre-set "tamperproof" models are also available.
Three mounting options include panel mount, through a 9/16" hole (nut included), and base mount, through 4 holes 0.125" dia. and manifold mount(See drawings)
Plastic construction - corrosion resistant wetted materials.
High accuracy - Low effect of supply variation on output.
Low cost - Perfect for OEM applications.
Polysulfone, Buna-N, EPDM, Acetal, Polyurethane, Stainless steel
< 9 SCIM (150 cc/min) @ 30 PSI (207 kPa) supply
< 21 SCIM (350 cc/min) @ 100 PSI (689 kPa) supply
< 0.1 PSI (0.69 kPa) Per 5 PSI (34.5 kPa) supply change
< +/- 0.25 PSI (1.72 kPa) when supply is removed and re-applied
0.5 cu.ft./min. (14 LPM) with outlet 5 PSI (34.5 kPa) above set-point
Note: R-910 series regulators are not recommended for dead-end, no flow applications. A downstream relief of at least 20 cc/min is recommended.
