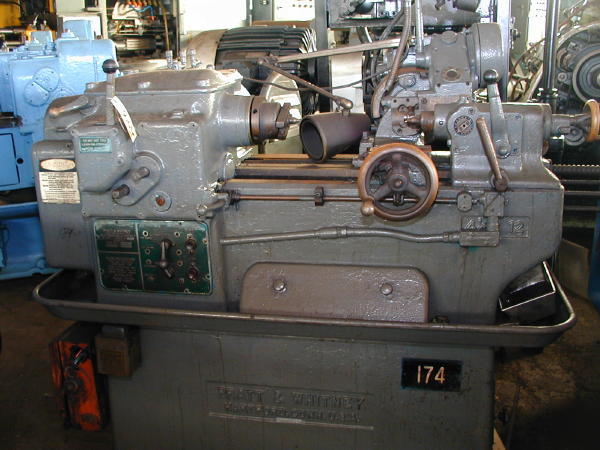

Pratt & whitney 4 1/2 in x 12IN thread milling machine
http:// /images/islogo_lg.gif
PRATT & WHITNEY 4 1/2 IN X 12IN THREAD MILLING MACHINE
Pratt & Whitney 4-1/2" x 12" Thread
Maximum Work Diameter: 4-1/2"
Maximum Swing Over Bed: 12"
Maximum Depth of Cut: 11/32"
Helix Angle Adjustment, RH Leads: 45 Deg.
Helix Angle Adjustment, LH Leads: 90 Deg.
Hole Thru Spindle Head: 1-9/16"
Work Spindle Speeds (16): .25 - 20 RPM
Cutter Spindle Speeds (5): 205 - 810 RPM
Leads W/ Regular Gears, LH & RH: 24 pi to 12"
Overall Machine Size: 58" x 41"
Machine Weight, Approx.: 2200 Lbs.
3/4 HP Cutter Motor 220/440/3/60
All Items Subject to Prior Sale
Be Sure to Verify Specs & Condition Prior to Purchasing
