Microchip pic chip ic programmer copier duplicator
MICROCHIP PIC COPIER DUPLICATOR

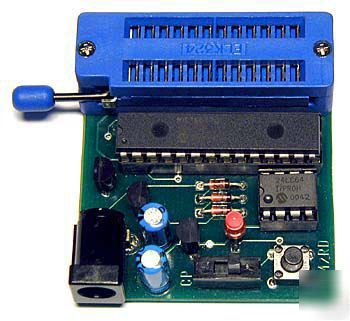

DUPLI-PIC16C54/56/58x is a low-cost hand-held device intended to copy the contents of the master PIC16C54/56/58x chip to any number of target chips. It can be quite useful for small to medium volume programming. The Copier has the following features:
* Direct support for all Microchip's 18-pin PIC16C54/56/58x devices
* Includes a ZIF socket for DIP packages
* Read Master and Program functions
* Reading and programming the complete contents of the chip including Program memory, configuration bits (fuses), ID word
* Code protection state of the programmed chip can be chosen by the dedicated switch
* Manufacturer approved programming algorithm
* Operates as a standalone unit (internal non-volatile buffer: 8K x 8)
* Very simple operation control using just one button
* Clear indication of the device status by the LED
* Safe chip insertion/removal by switching all device pins (including Vdd and Vpp) to ground when idle
* Operates from external power supply: 15V / 100mA (not included)
The following devices are supported by the Copier:
PIC16(L)C54, PIC16(L)C54?, PIC16(L)?54?, PIC16(L)C54C, PIC16(L)C56, PIC16(L)C56A, PIC16(L)C58A, PIC16(L)C58B.
