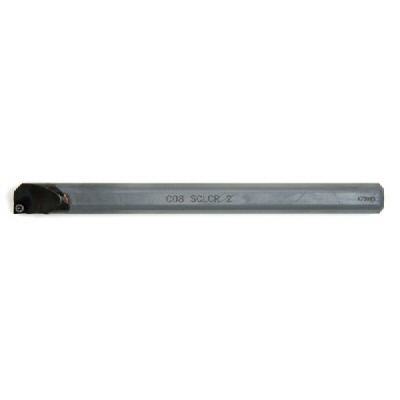

Solid carbide indexable boring bar .500 shank 1/2
* Shank diameter is .500 , Bar length is 6.0 inches
* Minimum bore diameter of .570 inches
* Bars have a flat on the top and bottom for easy alignment
* Extension ratios of over 10 to 1 are possible even in steel
* Boring bar includes torx wrench and 2 insert screws (1 spare)
* Uses series CCMT 21.5XXXX and CCMT 0602XXXX insert
* Also uses CCGT and CCET inserts, insert tolerance is the only difference
* 5 deg lead angle allows you to profile up to a 90 deg shoulder
* MariTool Part# is C08-SCLCR-2
