New harig ultra-grind no. 5C-v (p/n 215-100) in box wow


HARIG ULTRA-GRIND 5C-V FIXTURE BRAND NEW IN BOX NEVER USED OUT ONLY FOR PICTURES AND RECEIPT INSPECTION WHAT MORE CAN I SAY!!! CURRENT LIST $2550 SPECS BELOW FROM HARIG MFG THANKS

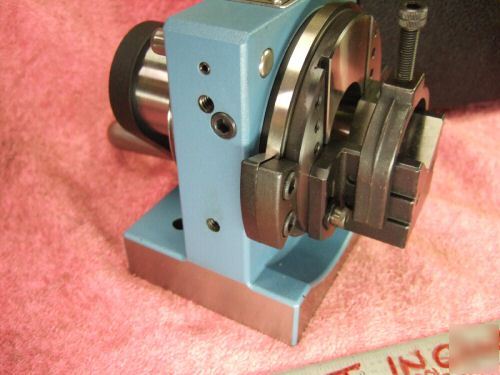

ULTRA-GRIND No. 5C-V (P/N 215-100)
Harig's enhanced version of the Grind-All No. 1; this ultra-precise combination 5C collet/v-block fixture is the most versatile unit in the Harig line. Quick, easy changeover from collet to v-block while maintaining "tenths" accuracy, the Ultra-Grind is the toolroom solution for grinding punches, core pins, and EDM electrodes. Also used for precision indexing, inspecting, milling, boring, and radius dressing. Lube and purge port permits additional EDM applications, while advanced bearing is ideal for motorization. Complete line of accessories compliments the Ultra-Grind. When a precision combination 5C collet/v-block fixture is needed, the Ultra-Grind is up to any toolroom task. Reliability backed by Harig's trademark service.
· Hardened and ground tool steel with solid one piece construction
· Preloaded ball and race design provides highest accuracy bearing, ideal for motorization
· 360 degree graduated dial for convenience
· 24 division index plate with precision index pin locks in every 15 degrees to +/- 10 seconds
· 2 adjustable stops work with stop pin to set accurate angles between index locations
· Locking screw locks spindle at any position between indexes
· U-Clamp and screw secure piece part in v-block
· Removable v-block makes accurate 5C collet use easy
· Lube and purge port permits more EDM applications
· Narrow profile maximizes work area under grinding wheel
· Mounting holes on base of unit for use with Harig accessories
· Includes carrying case for protective, dust-free storage
· Full repair service and replacement parts available
STARRETT 6" SCALE IS NOT INCLUDED.
