Smart-cam cmm on-screen measurement software
Expandable, multifunction on-screen measurement software
Download a free trial version!
Smart-Cam CMM is a low-cost, machine vision, computerized measurement solution that works with a wide array of imaging devices and files. Smart-Cam CMM can make measurements with greater accuracy and in less time than conventional methods of measurement. In addition, Smart-Cam CMM can make measurements of objects that would be impractical or impossible to measure using conventional methods, such as large or distant objects.
Smart-Cam CMM converts any video camera, digital camera, web-cam, or other video capture device into a powerful Windows-based “smart camera†capable of making measurements.
The software acquires or loads an image, and does nothing more. You are then free to interact with the image using the mouse to place measurement points. Dimensional and angular measurements are possible. (This ability to interact with the image is available under all functions.)

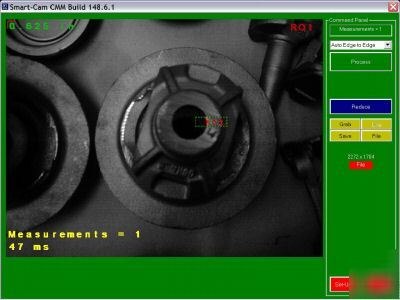

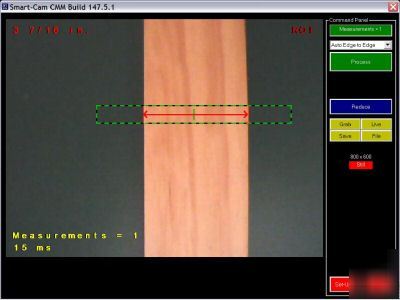

The software acquires or loads an image, finds the edges of interest, and measures the distance between them.
The software acquires or loads an image, finds the holes (or other shape) and measures the spacing in between the centers.

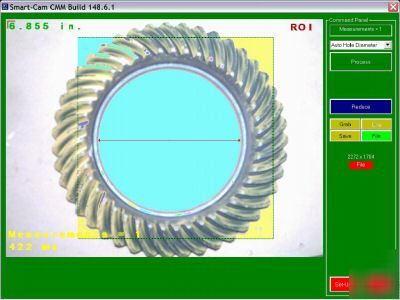

The software acquires or loads an image, finds the holes (or other shape) and measures the diameter of each hole.
The software acquires or loads an image, and calculates the surface area of an object in the image.
The software acquires or loads an image, and automatically calculates the distance from camera to target, using a special calibration target that is printed from any printer using an included PRINTCAL utility.
The software acquires or loads an image, and manually calculates the distance from camera to the target object.
Seven individually-configurable measurement functions
Two individually-configurable calibration modes
English or Metric systems of measurement
Configurable number of decimal places with optional display in fractions
Dimensional, radial, and angular measurements
Large, interactive on-screen display
Optional expand to fit screen
Multiple image sources for image acquisition
Video camera, digital camera, disk file
Resolutions up to 8192 x 6144 (48 megapixel)
Configurable screen colors and text background
Large buttons for optional touch-screen compatibility
Processing times typically under 100 milliseconds
Available Machine Vision Software Developer's Kit (SDK)
Run other machine vision applications through module replacement
Windows XP or Windows Vista
Screen resolution of 800 x 600 or higher
In the text of the email will be your license key (used to unlock the software) and a link to my website where
you can download the software.
3 new measurement functions have been added since this listing was posted: Auto Radius of Curvature, Comparator Grid, and Comparator
