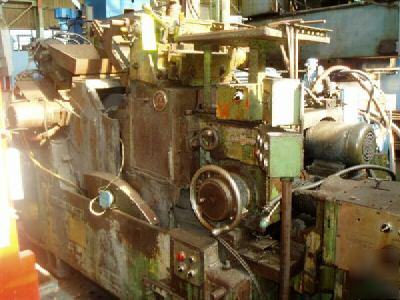

#220-8 cincinnati-milacron centerless grinder #24325
#220-8 CINCINNATI-MILACRON CENTERLESS GRINDER
New 1966, Serial No 2M8H5S-83, Series DE
Electro-Hydraulic Infeed w/One Way Slide Compensator
6" Infeed Work Rest w/Vertical Lift Fixture
Rotary Diamond Dresser Grinding Wheel
Hydraulic Regulating Wheel Profile Diamond Truing
5-Shoe Filmatic Grinding Wheel Bearings
Automatic Lubrication to Slides
Diameter Capacity, Nominal.............. 0" to 3"
Diameter Capacity, Maximum.............. 4.5"
Grinding Wheel Diameter, Minimum........ 15"
Grinding Wheel Diameter, Maximum........ 20"
Grinding Wheel Width, Maximum........... 8"
Grinding Wheel Hole Diameter............ 12"
Regulating Wheel Diameter, Maximum...... 12"
Regulating Wheel Width, Maximum......... 8"
Regulating Wheel Hole Diameter.......... 5"
Regulating Wheel Speeds, Low Range...... 15 to 56 RPM
Regulating Wheel Speeds, High Range..... 56 to 300 RPM
Grinding Wheel Motor, Horsepower........ 20 HP
Regulating Wheel Motor, Horsepower...... 1.5 HP
Electrical System....................... 440/3/60
Floor Space Required, W x D............. 10'10" x 7'11"
Weight, Approximately................... 12500 LBS
All machines/equipment subject to prior sale.
