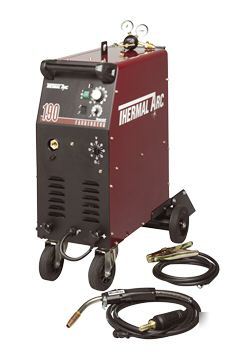

Thermal arc fabricator 190, mig welder W1001500
Power, Performance, Features... and Reliability
NEW 8 Voltage Taps! Providing a wider operating range of 20 to 190 amps with a smooth and stable arc characteristic. Unbeatable performance from 22 gauge to 5/16†(7.9mm) thick in a single pass.
* Simple Operation! Just refer to our comprehensive weld set up guide for optimum welding performance over a wide range of materials and shielding gases.
* Higher Output! The Fabricator 190 punches out 190 amp maximum output.
* Quick Change Polarity! Simple, quick change (no tools required) polarity from the front of the power source.
* 33 lb/44 lb Spool Capacity! Wire compartment design allows easy installation of 44 lb, 33 lb, 10 lb, 8†and 12†wire spool sizes.
* Overload Protection! Shuts down the power source to protect the internal electrical components from overheating.
* Heavy Duty Transformer! The transformer is built to last using premium quality 428F materials and fully dip varnished then baked for 4 hours.
* Metal Feed Plate! The metal wire drive system features 2 roll drive system, quick change reversible drive rolls and easy-to-set single scaled wire tension knob.
* Easy To Use Cylinder Rack! Single cylinder rack allows easy roll on loading of the gas cylinder.
* Spot Timer Kit! Adds a unique spot weld feature to give an accurately controlled spot time when spot welding.
* ISO 9001 Quality System! The certified quality management system guarantees the manufacture and distribution processes of this product.
* Brilliant Characteristics! Extremely smooth arc and negligible spatter using a wide range of gases, materials and material thicknesses.
* New Gun! Quality Tweco® WeldSkill MIG gun
190 Amp at 23.4V, 15% Duty Cycle
145 Amp at 22V, 30% Duty Cycle
80 - 700 IPM (2 - 18 m/min)
Fabricator 190 comes with:
* 10ft (3m), Tweco© WeldSkill MIG gun
* 10ft (3m) work cable and clamp
* Gas regulator/flowmeter
* Factory fitted gear/ single cylinder rack
* .023â€-.030â€/.035†reversible drive roll
CLICK ON FABRICATOR 190 SPECIFICATIONS LINK BELOW TO SEE COMPLETE MACHINE SPECIFICATIONS
Fabricator 190 Specifications
