Dyna myte 2400 cnc mill

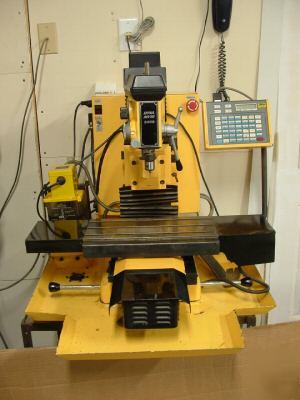

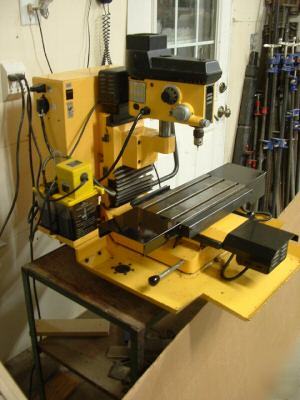

This machine is in very good condition and is still supported by the manufacturer. It has never been used in production. Original operation & maintenance manuals are pictured. This machine comes as shown with CHIBA oiling system. This machine was operated under manual controls and all axis are fine. The 2400 Travels: x= 6.200" y= 5.000" z= 4.000", Drilling Capacity Mild Steel: 0.2", (5 mm) Aluminum: 0.37" (10 mm), Endill Capacity Mild Steel: 0.37", (10 mm) Aluminum: 0.37" (10 mm), Max distance from spindle nose to table: 9.1" (232 mm), Spindle Stroke: 1.5" (38 mm) Quill diameter: 1.4" (36 mm), Spindle Speed: 0-10,000 RPM (Continuously adjustable).. Spindle Motor: 1/2 HP Universal AC. type X-axis travel(longitudinal): 6.2" (157 mm) Y-axis travel(cross): 5" (126 mm) Z-axis travel (vertical): 13" x 6" (105 mm) Resolution: All axes 0.0001" (0.0025 mm) Repeatability: 0.0005" (0.01 mm) Rapid Traverse: 30 in/min for all axes Position Accuracy: 0.012 in/total (0.03 mm/total) Spindle Collet Capacity: 1.16" - 3/8" (1 mm - 10 mm) Dimensions Width: 23.7" (602 mm) Depth: 21.5" (546 mm) Height: 21.5" (546 mm) Net Weight: 290 Lbs (130 Kg) Electrics: 120 Volt / 60 Hz, AC Single Phase, 7 Amps Controls: 2400 C Control Rs-232 Port: Yes, (for upload and download via standard null modem cable)
ROTARY TABLE: Yuasa International, Model 550,6â€, Horizontal- vertical rotary table, w/original test papers. This is a high quality product and would cost ca. $800 new w/o the electrics. This model is fitted to plug in the “AUX†port on the Dyna 2400 and can be programmed as an auxiliary to the 2400. As new in the box.
