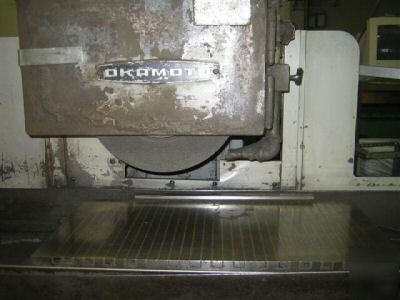

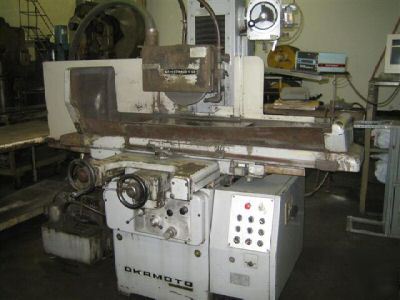

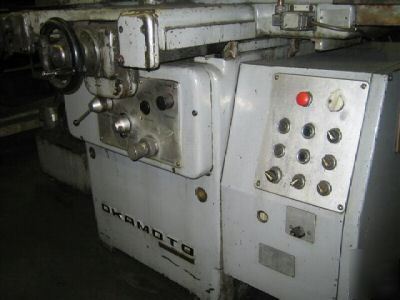

Okamoto surface grinder accugar 12X24
Model...................................PSG-63UA Accugar 124
Serial #............................................................. 7975
Year................................................................. 1978
Magnetic Chuck Working Surface....................... 12" x 24"
Longitudinal Travel (X-Axis).................................. 29.5"
Cross Travel (Z-Axis).......................................... 13.5"
Vertical Travel (Y-Axis)....................................... 19.25"
Max Height Under a New 12" Wheel..................... 13.5"
Table Longitudinal Feeds Range (Variable)............ 1-82 FPM
Cross Feeds Range Continous (Variable)............... 8-40 IPM
Croos Feeds Increments...................................... .02 -.8"
Spindle Vertical Feeds Increments...................... .00005"- .0015"
Grinding Spindle Speed..................................... 1800 RPM
Grinding Wheel Diameter................................... 12"
Grinding Wheel Width, Standard....................... 1-1/2"
Grinding Wheel Hole Diameter.......................... 5"
Grinding Wheel Motor...................................... 5 HP
Hydraulic Pump Motor..................................... 2 HP
Approximate Machine Dimensions.................... 80" x 95"
Approximate Machine Height............................ 80"
Approximate Machine Weight........................... 5,280 LBS
