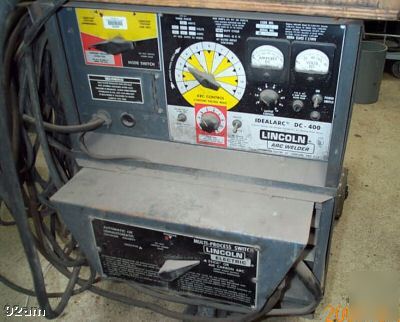

Lincoln arc welder idealarc #dc-400 stick / air carbon
LINCOLN ARC WELDER IDEALARC #DC-400 STICK / AIR CARBON
.........LOCAL PICK-UP IS PREFERRED...............
For your consideration, we offer this mobile 100 % Duty Cycle, 3-phase, 400 amp, Constant voltage & variable voltage DC Arc Multi-purpose Lincoln Welder Source with factory installed Multi purpose Switch. Includes Undercarriage Dolly, GMA #LN7 wire feeder, 50 ft electrode lead and all the hoses & guns pictured. Nice used setup in very good condition, ready to go to work for you.
Welds great in both the stick & mig process!!
Some specs: Rated output 400 Amps at 36 V, Nema Class 1(100).
3 phase Input 76 AMPS@ 230 V / 38 Amps @460 V / 60 HZ
From the manufacturer: This heavy-duty, industrial, three-phase multi-process power source from
Lincoln Electric scores big in MIG, flux-cored, submerged arc, stick and DC TIG welding. It's a great choice for arc gouging too. The DC-400 is easy to set-up and use. Changeover between processes is as simple as turning a switch with the factory installed multi-process switch. On-board ammeter and voltmeter make monitoring of key welding parameters a snap. Inductance and arc force controls allow the operator to efficiently refine the arc for the job at hand.
• Factory installed multi-process switch.
• Easy Switch to change from CC (Stick/TIG/arc gouging), CV (MIG/flux-cored & gas) and CV Submerged Arc modes.
• Arc force control adjusts short circuit current for a soft arc or a forceful driving arc in the CC (Stick/TIG) mode.
• Arc control adjustment changes pinch effect of the arc to control spatter, fluidity, and bead shape in the MIG/Flux-Cored mode.
• Capable of stick and DC TIG welding, and air carbon arc gouging with up to 5/16 (8mm) diameter carbon rods.
• Solid state circuitry provides extra long life for repetitive welding applications.
• Outstanding welding performance with a single range full output control potentiometer.
• Analog ammeter/voltmeter are standard.
• Input line voltage compensation for maintaining weld consistency.
• Fan cooled for long life expectancy. Electronic and thermostatic protection safeguard from current overload and excessive temperatures.
• Windings and rectifiers protected against moisture and corrosive environments.
• Both 14 pin MS-style cable connection and terminal strip access for remote control and wire feeder connections and output studs for weld cables.
• Circuit breaker protected on-board power for the wire feeder: 115V available from the terminal strip, 42V and 115V available from the 14-pin connector receptacle.
• 115V AC power on/off switch with pilot light provides added user safety.
• Durable powder paint system protects both sides of all painted surfaces to prolong machine's life.
Weight:473 lbs. (215 kgs. ) Welder alone. Add another 150 lbs for peripherals.
Dimensions (in) H x W x D : 27.5 x 22.3 x 33.1 (not including the peripherals)
Dimensions (mm) H x W x D : 698 x 566 x 840
The manufacturer price is $4730.00 for just the welder alone. All the peripherals listed would cost an additional $1500.00, so this set-up would cost you Around $6000 new!! This one available for a fraction of that cost!
DCP_4248 DCP_4249 DCP_4277 DCP_4275 DCP_4273 DCP_4272 DCP_4276 DCP_4267b .
This is weld made at time of listing. Outlined is both the stick & Mig.
Good Luck and Thanks for Looking !
LOCAL PICK UP IS OUR PREFERENCE ON THIS ITEM. We are easy on / easy off I294 & the Cicero exit just SW of Chicago, IL. Got a truck coming our way? Pre-Paid Pre-arranged pick-up can be 30 minutes back on the road!
