Mf-link keil arm usb jtag adaptor ARM7 ARM9 cortex-M3

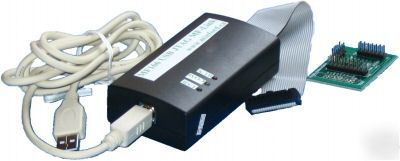

Minford MF166 USB JTAG MF-Link For ARM
Minford MF166 USB JTAG MF-LINK is fully compatible with Keil U-LINK (100% compatible). The minford MF-LINK USB Interface Adapter connects PC's USB port to target hardware via JTAG and allows to debug embedded programs running on target hardware.
MF-LINK fully supports both on-chip and external Flash programming of devices using pre-configured Flash algorithms contained in RealView MDK-ARM or user defined algorithms.
* Size: 10cm x 6cm x 2.5cm (*)
* Components and PCB: High Quality PCB and SMT components
* Software: Keil uVision IDE/Debugger
* Approximately weight and size.
* Download or erase programs on target board device (MCU internal Flash or external flash memory).
* Flash program speed >15KB/s
* Full Speed USB interface to Host PC, Supports JTAG clock speed up to 1MHz
* Memory read/write speeds: >28KB/s
* Fast Single-Step 50 Instructions/Sec
* Insert multiple breakpoints.
* USB bus powered, no external power supply is required.
* Compatible with Ulink USB-JTAG Adapter.
* User I/O via the Debug Channel.
* JTAG 20 pin to 14 and 10 pin extension card (New Feature!)
* Support uVision IDE/Debugger.
* SMD Technology components with high quality PCB
MF-LINK Device Supports Details:
* Analog Devices (ARM7/ARM9/Cortex-M3 Family)
ADuC7019, ADuC7020, ADuC7021, ADuC7022, ADuC7024, ADuC7025, ADuC7026, ADuC7027, ADuC7032,
ADuC7033, ADuC7128, ADuC7129
* Atmel (ARM7/ARM9/Cortex-M3 Family)
AT91C140, AT91F40416, AT91F40816, AT91FR40162, AT91FR4042, AT91FR4081, AT91M40400,
AT91M40800, AT91M40807, AT91M42800A, AT91M43300, AT91M55800A, AT91M63200, AT91R40008,
AT91R40807, AT91RM3400, AT91RM9200, AT91SAM7A1, AT91SAM7A2, AT91SAM7A3, AT91SAM7S128,
AT91SAM7S256, AT91SAM7S32, AT91SAM7S64, AT91SAM7SE256, AT91SAM7SE32, AT91SAM7SE512,
AT91SAM7X128, AT91SAM7X256, AT91SAM7XC128, AT91SAM7XC256, AT91SAM9260, AT91SAM9261
* Freescale Semiconductor (ARM7/ARM9/Cortex-M3 Family)
MAC7101, MAC7104, MAC7105, MAC7106, MAC7111, MAC7112, MAC7114, MAC7115, MAC7116,
MAC7121, MAC7122, MAC7124, MAC7125, MAC7126, MAC7131, MAC7134, MAC7135, MAC7136, MAC7141,
* Luminary Micro (ARM7/ARM9/Cortex-M3 Family)
LM3S101, LM3S102, LM3S301, LM3S310, LM3S315, LM3S316, LM3S328, LM3S601, LM3S610, LM3S611,
LM3S612, LM3S613, LM3S615, LM3S628, LM3S801, LM3S811, LM3S812, LM3S815, LM3S828
* OKI (ARM7/ARM9/Cortex-M3 Family)
ML674000, ML674001, ML674002, ML674003, ML675001, ML675002, ML675003, ML67Q4050, ML67Q4051,
ML67Q4060, ML67Q4061, ML696201, ML69Q6203
* NXP (founded by Philips) (ARM7/ARM9/Cortex-M3 Family)
LPC2101, LPC2102, LPC2103, LPC2104, LPC2105, LPC2106, LPC2114, LPC2119, LPC2124, LPC2129, LPC2131,
LPC2132, LPC2134, LPC2136, LPC2138, LPC2141, LPC2142, LPC2144, LPC2146, LPC2148, LPC2194, LPC2210,
LPC2212, LPC2214, LPC2220, LPC2290, LPC2292, LPC2294, LPC2364, LPC2366, LPC2368, LPC2378, LPC2458,
LPC2880, LPC2888, LPC3180 (New)
* Samsung (ARM7/ARM9/Cortex-M3 Family)
S3C2410A, S3C2440A, S3C44B0X, S3C4510B
* Sharp (ARM7/ARM9/Cortex-M3 Family)
LH75400, LH75401, LH75410, LH75411
* ST Microelectronics (ARM7/ARM9/Cortex-M3 Family)
STR710FZ1, STR710FZ2, STR711FR0, STR711FR1, STR711FR2, STR712FR0, STR712FR1, STR712FR2,
STR715FR0, STR730FZ1, STR730FZ2, STR731FV0, STR731FV1, STR731FV2, STR735FZ1, STR735FZ2,
STR736FV0, STR736FV1, STR750FL2, STR750FV0, STR750FV1, STR750FV2, STR751FR0, STR751FR1,
STR751FR2, STR752FR0, STR752FR1, STR752FR2, STR755FR0, STR755FR1, STR755FR2, STR755FV0,
STR755FV1, STR755FV2, STR910FM32, STR910FW32, STR911FM42, STR911FM44, STR912FW42, STR912FW44
* TI (ARM7/ARM9/Cortex-M3 Family)
TMS470R1A128, TMS470R1A256, TMS470R1A288, TMS470R1A384, TMS470R1A64, TMS470R1B1M,
TMS470R1B512, TMS470R1B768
1. Minford ARM USB JTAG MF-LINK
4. JTAG 20 pin to 14 and 10 pin extension card
5. Quick Manual (content sent by email, not in a CD disk)
For more information about this product, please find it at http://www.minford.ca/.
Delivery Time: US and Canada : 3 - 5 days; Europe: 4 - 8 days; All other countries: 5 - 10 days
Money back guarantee!Minford promises that all products may be returned or exchanged within 7 days from the date merchandise is received.
If you have any question about this product, please contact us (info@minford.ca), we provide detail technical
