New varian turbo-v 301 navigator turbomolecular pump tv

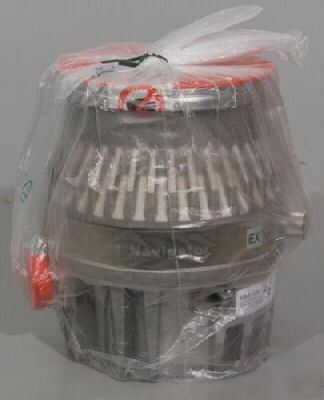

NEW Varian Turbo-V 301 Navigator Turbomolecular Pump
Comes with what you see in the pictures. If you don't see it, you probably wont get it.
Specifications are from Varian and may vary slightly due to upgrades, options, or revisions this unit may or may not have.
The unit is believed to be brand new in the original factory box. It is possible it was rebuilt by Varian but it looks brand-new.
List Price is: $7,185.00 from Varian
Description by Part Number: Pump, Turbo-V 301 Navigator, ISO100, Pump Only, Part Number 9698918
The Unit's Serial Number Tag Reads:
Power Requirements: 963 Hz, 90 V to 250 V?
With more than 50 years of experience in vacuum science, Varian, Inc. leads the way in developing unique design solutions. Many of these innovations are present in Varian's Turbo-V turbomolecular pumps:
Varian's design mission is to maximize performance at minimum cost and size.
This is the most effective turbo-pumping technology available. Thanks to the powerful MacroTorr innovation you can:
* maximize the throughput of the pump
* work with foreline pressures as high as 18 mbar
* increase the compression ratio by decades, most notably for light gases
* keep the size and weight of the pump to a minimum
Very high gas-load capabilities:
Thanks to our state-of-the-art numerical modeling tools, the turbo pumping stages are designed to minimize power consumption. Special care is given to the thermal design of the cooling fins and the internal temperature distribution to ensure efficient operation.
Varian, Inc. produces each pump rotor from a single piece of high-tech aluminum alloy. This major technological achievement improves the life of the pump for several reasons:
* Rotor weight is minimized.
* Stresses on the bearings are reduced.
Highly reliable, maintenance-free ceramic bearings:
These bearings need no lubrication, which means no oil, no refills, and no contamination. Ceramic is lighter, harder, smoother, and thermally more stable than any steel. So, a ceramic-ball bearing can run faster, hotter, and more quietly than any steel-ball bearing. Performance has never been so trouble-free.
Pumping Speed: With NW100 ISO Flange:
With Recommended Rotary-Vane Forepump: < 5 x 10-10 torr
With Recommended Dry Forepump: < 5 x 10-9 torr
Foreline Flange: NW16 KF, NW25 KF optional (I am not sure which this unit has, I think it ist he NW 16KF
Rotational Speed: 56,000 rpm
Cooling Requirements: Natural air convection, forced-air or water cooling optional
Maximum Bakeout Temperature: With ISO flange: 80°C at inlet flange
Vibration Level (Displacement): <0.01 µm at inlet flange
