> 14", dual head, haberle H350H, auto downfeed cold saw

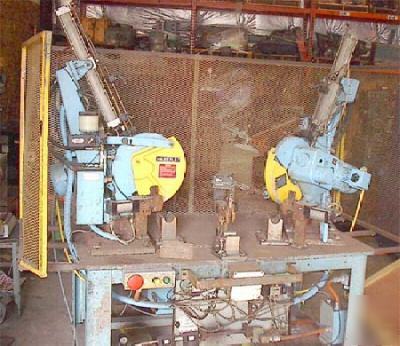

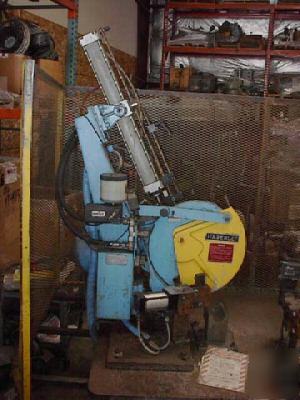

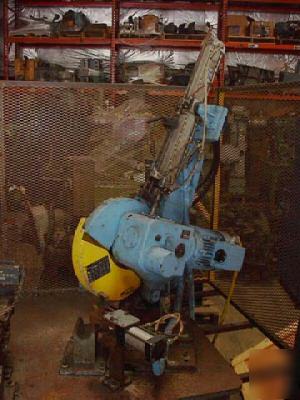

14", dual head, haberle H350H, auto downfeed cold saw
Dual Mitering Automatic Cold Saw
Type: Dual Head Dual Mitering Cold Saw
- Section: 170mm x 60mm (6.5" x 2.5")
Standard with reliable DRUMAG feeder HPE-11: Quick motion from rest position
to the adjustable material level and infinitely adjustable power downfeed
motion, with adjustable return point and quick return motion into the upper
rest position. This version allows the feeding of the material over the vise
into the cutting area, but requires two-hands safety start system. Optional
with DRUMAG feeder HPE-77: This unit allows the adjustment of the upper stop
position by elimination of the quick downfeed motion towards the material.
This means a shorter cutting time. The one-hand start gets the feeding time
down to an absolute minimum. So quantities of 200 - 300 cuts per hour can be
realized when cutting tubing of 50 mm dia.
Double joke pivot system with hardened and ground shaft, adjustable on both
sides. Low pivot level cares for extremely little vibration.
Large, plain table allows individual positioning of the two vise units. We
will modify the table to your specifications.
*Preliminary Specifications Subject to Verification.
