RF31 3-axis dro kit long table variation
3-Axis DRO Kit; RF31 Belt Driven Mill/Drill for 32 Inch Long Table
Standard RF31 Table length is 28.5 inches this kit is for machines with a 32.5 inch tables and 21.5 to 24 inches of Table Travel. Only order this kit if you have a longer Table.
SMW Precision Shop & Hobby DRO Kits unlock the Accuracy in your Mill/Drill. Our 3-axis DRO System supplies Quick, Easy Digital positioning with Superior Accuracy. Now you don’t have to spend your time doing Layout, sight positioning and Backlash Compensation. This complete kit is easy to install and supplies fast accurate Digital Positioning.

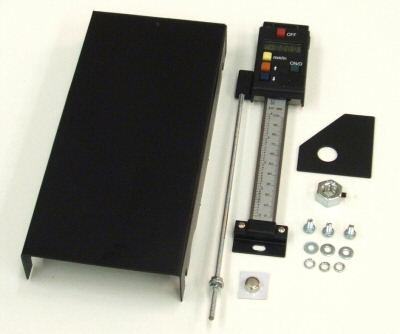

We recently upgraded and redesigned our Belt Driven Mill Drill Kit. 3-axis Digital Display electronics’ have been upgraded with full Opto-Isolation for superior resistance to motor interference. Kit includes a 14 gage powder coated replacement mill face that allows easy Z-axis Scale mounting and a direct Spindle to scale connection. All normal Mill functions are retained with our kit.
Installation Kit; everything is supplied needed to install your DRO system exactly as pictured. No other DRO Kit has any scale mounting brackets that are even usable for Mill Drill installation. We don’t expect you to spend 20 to 40 hours of time trying to mount a DRO System. A Belt Driven Mill Drill is very difficult to fit machine for DRO installation; our kit makes it simple. Kit includes completely finished parts and all hardware needed for installation. Installation manual provides Step by Step instructions with detailed pictures; telephone support is also available.
Shop & Hobby 3-Axis DRO System Kit has a Full 1 Year USA warrantee and includes Installation and Technical Support. Our Digital Positioning System teams USA designed and manufactured Installation kit with high grade foreign measurement components. We have Hundreds of Satisfied Users.
SMW Precision Sales & Support; (***)-533-9016 (Toll Free) 9am to 5pm PST Mon-Fri.
Getting the Most out of Your Mill/Drill;
A DRO System is a huge Step up in capabilities and accuracy for your Mill/Drill. Need for most Layout and almost all other measurement tasks is eliminated. We also suggest acquiring an optical edge finder along with an X-axis powerfeed. Add these accessories with our DRO system and that tough to use Mill/Drill changes into an easy to use precise machine tool. Even the newest machinist will quickly get good results.
We have been selling Shop & Hobby DRO Systems for about 5 years and they do hold up; they are a basic DRO System. We also sell a Top of the Line High Precision Glass Scale DRO System for Mill/Drill’s. While more expensive it is built Tough and supports many additional Milling Processes including repetitive Production. With a PRO DRO System you spend about 95% of your time in actual machining operations.
DRO Operation; Zero any Axis at any point. Switch between in/mm measurement at anytime. A X-axis Diameter function is included for Rotary table usage or Lathe operation. Also included is Machining Calculation Software that allows PC positional calculation for plotting Bolt Circles, Line Bore and other advanced Milling processes. Software is an evaluation version with a 30 day trial.
* X-axis horizontal scale 24†travel
* Y-axis horizontal scale 8†travel
* Z-axis Vertical scale 5†travel
* 3 Quick Connector Scale Cables
* Power supply 110 volt plug
Specifications: 3- Axis Readout Display
* 3 display windows for X, Y, and Z
* Back Lighted LCD Display numbers 5/8th inch
* Dimensions 7 x 5 x 1.5†5/8th" Numbers
* Scale Zero setting at any point
* Inch/Millimeter conversion
* Linear or Radius measurement for X-axis
* Magnetic Display attachment
* Power Supply variable 100/280 volt 50-60hz standard 110 volt plug supplied
* 3 connector cables two 60†& 80â€
* Inch/Millimeter conversion button.
* Preset Function display +/- ( except 8")
* Resolution: 0.01mm/0.0005â€
* Minimal Repeatable Accuracy +/- 0.001â€
Your Satisfaction is Guarantee- If your DRO System kit is not everything we have promised notify us within 14 days after kit delivery for a full purchase price refund! Kit must be returned in salable condition.
