Hp (agilent) 8971C noise figure test set w/ options
HP / Agilent 8971C Noise Figure Test Set, 10 MHz - 26.5 GHz (w/ Options)
* Description: The HP / Agilent 8971C offers simple double sideband measurement and accurate single sideband measurements in a single unit. Broadband single sideband measurements from 10 MHz to 26.5 GHz with a single calibration and sweep are made possible because of the high performance components in the 8971C, including a stable YIG filter. A low noise preamplifier built into the Noise Figure Test Set lowers the second stage noise figure, which reduces a major source of measurement uncertainty. When paired with the measurement modes in an 8970B, double down-conversion is possible because the 8971C acts as the second downconverter. These modes can be used for millimeter wave measurements of amplifiers and transistors and measurements of receivers and mixers with IFs above 1.6 GHz. Features and specifications of the HP 8971C Noise Figure Test Set include:
* 10 MHz to 26.5 GHz frequency
* Input SWR: 10 MHz to 18 GHz; 2.25 and 18 to 26.5 GHz; 2.7
* Noise Figure (Max.): 10-30 MHz: 18 dB; 30-100 MHz: 13 dB; 0.1-12 GHz: 10 dB; 12-18 GHz: 11.5 dB; 18-26.5 GHz: 14.5 dB
* Gain 10 MHz to 26 GHz: 23 dB to 27 dB
* +7 dBm Lo input power (Min)
* Accurate broad band measurements from 10 MHz to 26.5 GHz are possible with a single calibration and sweep
* Cosmetic Condition: Excellent
* Working Condition: Presumed Good but Untested

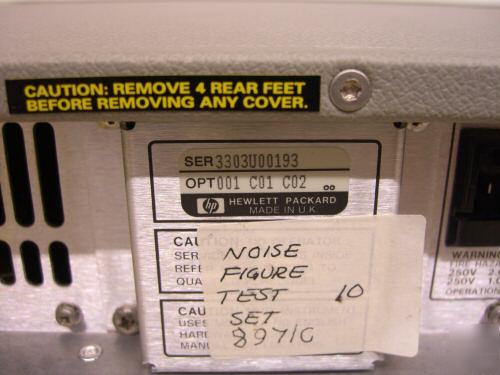

* Other Comments / Notes: This unit was removed from an ATE rack system and includes the following options:
* 001: Add LO Power Amplifier
* C01: Moves LO Input to rear
* C02: Moves IF Output to rear
* Warranty: Rest assured that your purchase includes a 3-day DOA Guarantee. If the item is DOA, you will need to notify us within 3-days of receipt. Item(s) must be returned in the same condition as received within 7 days of receipt. (See below for further details).
We strongly recommend that you properly pack and insure the package against loss or damage. It is ultimately your responsibility that your returned product arrives at our location within the allotted return time frame in the same condition it was sent.
