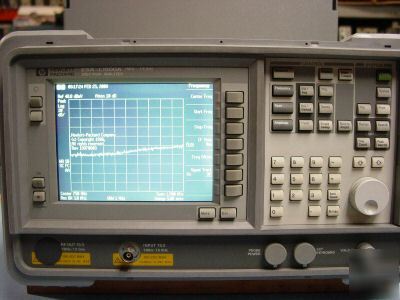

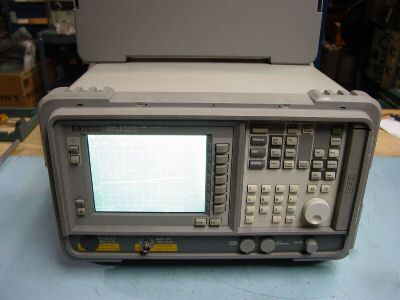

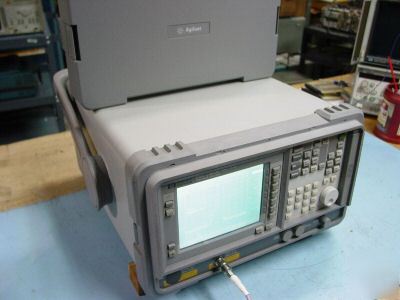

Agilent/hp E4411A esa-L1500A spectrum analyzer 1.5GHZ
Agilent E4411A ESA-L1500A Spectrum Analyzer 9kH-1.5GHz

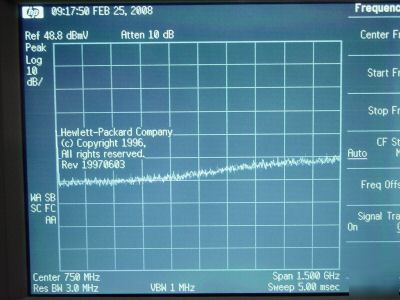

The Agilent E4411A spectrum analyzer is a wide band, very sensitive receiver. It works on the principle of "super-heterodyne receiver" to convert higher frequencies (normally ranging up to several 10s of GHz) to measurable quantities. The received frequency spectrum is slowly swept through a range of pre-selected frequencies, converting the selected frequency to a measurable DC level (usually logarithmic scale), and displaying the same on the CRT of the Agilent E4411A. The CRT displays received signal strength (y-axis) against frequency ( x-axis).
Some applications for Agilent E4411A Spectrum Analyzers include Site Monitoring: Verify that the frequency and signal strength of your transmitter is accurate. Interference: Before a system is installed you use a Agilent E4411A spectrum analyzer to verify that the frequencies (you plan to use) are not occupied or if the presence of a very strong signal will interfere with your new setup. Interference can be created by a number of different situations. Other tests that utilize the Agilent E4411A spectrum analyzer features include antenna isolation, co-channel interference, adjacent channel power, occupied bandwidth, intermodulation, microwave or satellite antenna alignment, and characterization of components.
Features:* Economical and portable, rugged packaging and construction, easy to use
* Frequency range 9 kHz to 1.5 GHz with frequency accuracy of ±2.0 kHz at 1 GHz (without temperature)
* Phase noise <= -90 dBc/Hz (10 kHz offset) and residual FM <=100 Hz P-P
* Resolution bandwidths 1 kHz to 3 MHz
* Maximum amplitude range -120 dBm to +30 dBm
* Maximum dynamic range >=78 dB/>=85 dB (2nd/3rd order)
* Log range 85 dB with 10 divisions on screen
* 15.8 cm, high resolution, LCD display, continuous background environment alignment

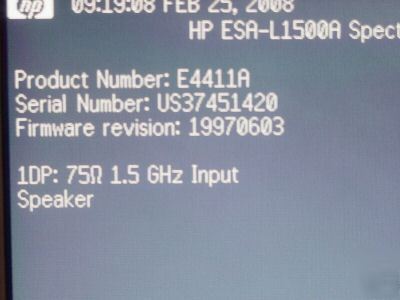

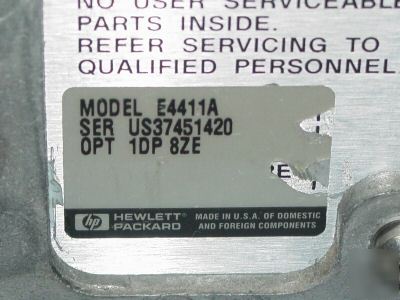

OPTION INSTALLED: 1DP - 75ohm input impedence ( 1MHz-1.5GHz )
