Bacharach 300 combustion analyzer w/factory calibration
Bacharach Model 300 Combustion Analyzer w/Type K High Heat Probe
This instrument is used by furnace and boiler technicians who need to determine combustion safety, environmental compliance and efficiency in large commercial and industrial systems. This unit is used by quite a few EPA inspectors at the state and federal level.
The Model 300 lets you conduct easy and accurate electronic combustion analysis on a broad range of fossil fuel burning appliances from small to large condensing and non-condensing furnaces and boilers. The unit’s microprocessor controls the sequence of operation while calculating burner efficiency. It’s user-friendly interface leads you through proper procedures, and makes combustion testing easy.
Programmed for 7 different domestic fuels
* Angled display panel allows the operator to conveniently view the panel from any working position.
* electrochemical sensors: oxygen, carbon monoxide. Sensors are externally mounted for fast, uncomplicated installation.
* Industrial probe is made of stainless steel measuring 11.5 inches.
* Roomy, rugged carrying case easily accommodates instrument and accessories. Lightweight, durable and compact, weighs about 15 pounds.

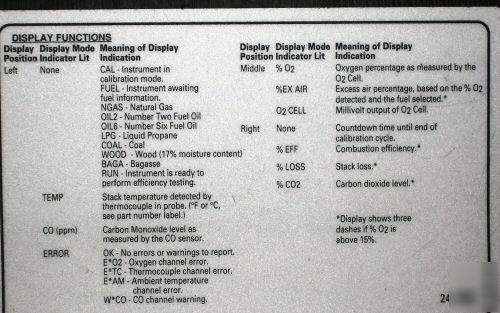

* Three large digital displays with continuous and independent functionality.
* High performance pump continuously draws filtered flue gas into the unit.
Carbon Monoxide (CO) - 0 to 3,000 ppm (4000ppm @ 72F)
* Stack Gas Temperature - 0 to 2,000°F (1,093°C)
* Combustion Efficiency - 1 to 99.9%
* Carbon Dioxide - 1 to 20.0%
This link for Specs from Bacharach
* http:// /PDF/Brochures/Model%20300.pdf
* http:// /PDF/Instructions/24-9223.pdf
