> 16-1/2" x 60" harrison engine lathe, no. M400 (16730)

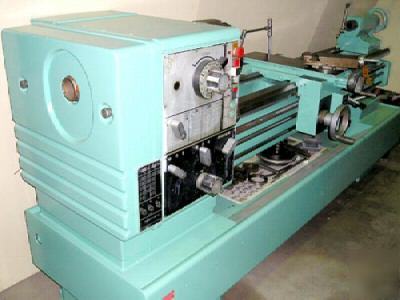

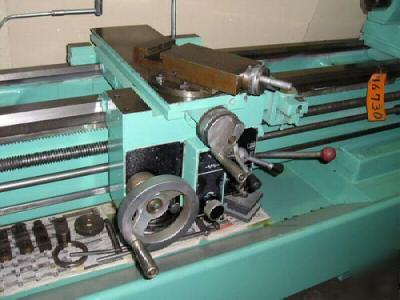

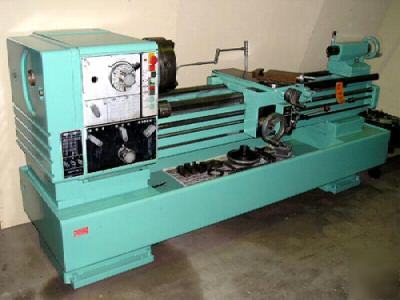

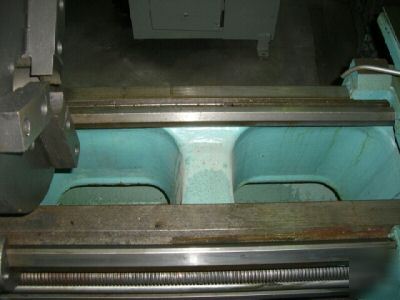

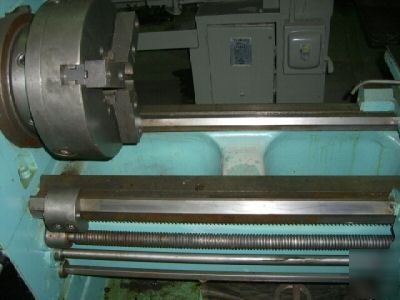

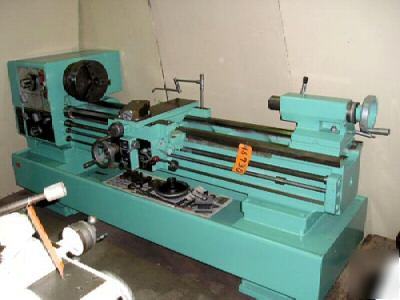

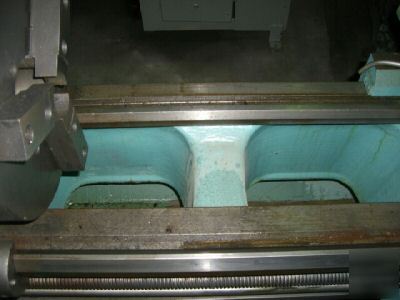

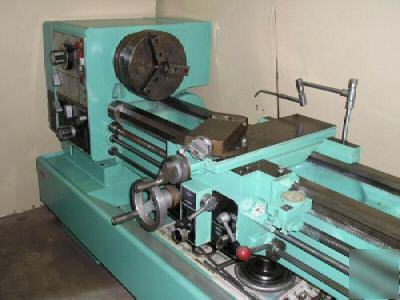

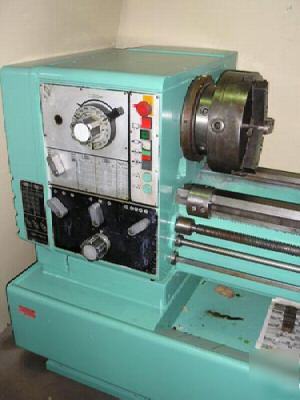

16-1/2" x 60" harrison engine lathe, no. M400 (16730)
16-1/2" x 60" Harrison, No. M400, 40-2000 RPM, Inch/mm, 10 HP, 1979 Our stock number: 16730 MODEL...................................M400
SERIAL NUMBER...........................403268-2908 Year: 1979
Swing Over Bed and Saddle Wings............16-1/2"
Swing Over Cross Slide.....................10"
Bar Capacity Thru Spindle..................2-9/16"
Distance Between Centers...................60"
Spindle Bore...............................2-9/16"
Spindle Nose...............................8" D1 Camlock
Spindle Speeds.............................(18) 40 to 2000 RPM
Threads, U.S. .............................(38) 2 to 72
Threads, Metric............................(35) .2 to 14
Module Pitches, MM.........................35.2 to 3.5
Longitudinal Feeds....................... .0015" to .040"
Cross Feeds.............................. .00075" to .020"

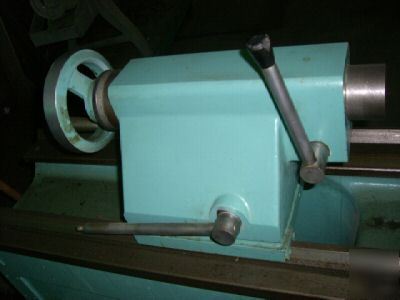

Tailstock Taper............................5 M.T.
10 HP Main Motor, 1750 RPM 230/460/60/3
Approximate Weight.........................4300 Lbs.
All items are sold SPECIFICATIONS SUBJECT TO VERIFICATIONS.
All items are offered locally and could be sold previous to end of store listing.
