30" x 113" niles slant bed cnc lathe, 5-3/4" spdl hole
Photo Sharing and Video Hosting at Photobucket

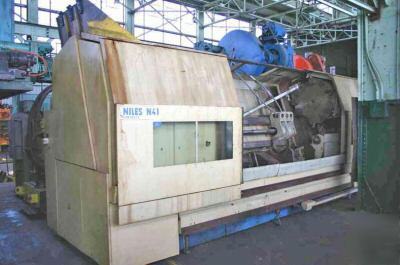

30" X 113" NILES SLANT BED CNC LATHE
SERIAL ................................. 860.0003.14
MODEL .................................. N41
MAXIMUM SWING OVER BED ................. 31-7/8" DIAMETER
SWING OVER CROSS SLIDE ................. 20-7/8" DIAMETER
MAXIMUM TURNING DIAMETER ............... 26-3/4"
MAXIMUM TURNING LENGTH ................. 98-7/16"
SPINDLE NOSE ........................... A15
HOLE THRU SPINDLE ...................... 5-3/4"
SPINDLE SPEEDS (INF. VARIABLE) ......... 28 TO 1600 RPM
NUMBER OF TOOL TURRETS ................. 1
TOOL CAPACITY OF TOOL TURRET ........... 12
RAPID TRAVERSE RATE .................... 472 IPM
MAXIMUM WORK PIECE WEIGHT .............. 8800 LBS.
CHUCK .................................. 24", 3-JAW
PROGRAMMABLE FEEDS AND THREADING ....... YES
POWERED TAIL STOCK ..................... YES
CNC CONTROL ............................ SIEMENS "SINUMERIK"
MOTOR .................................. 100 HORSEPOWER
