Hp 8924C 60WATTS service monitor agilent 8920B ifr
Item Condition (AS PICTURED...)

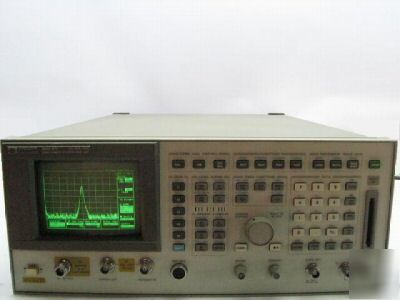

HP 8924C Service Monitor with Spectrum Analyzer and Tracking Generator (60Watts Input)
If you are looking for a service monitor and have thought of an HP 8935, Marconi 2955B, IFR 1200S or Motorola R2600;
It would be best to consider this unit instead. HP 8935 does not have all the tone encode decode(like DCS) function nor auto tune. Auto tune is very useful when working with channelize radio, like CB, marine, commercial and air band radio. The HP 8924C will automatically tune the transmit frequency and start making measurement. Many IFR service monitors do not have this function (example: IFR 1200S or COM-120B). Marconi 2955B does not have spectrum analyzer or tracking generator and limited tone encode decode functions. Motorola R2600 spectrum analyzer have slow refresh, and tracking generator is limited to 50Mhz sweep. The HP 8924C will allow you to sweep the entire frequency range from 30mhz to 1Ghz(useable range 5mhz to 1Ghz).
* Oven Controlled Crystal Reference Oscillator (.001ppm)
* RF Frequency Counter (with frequency error)
* AF Frequency Counter (20Hz to 400Khz)
* Sensitive Receiver( for off air monitoring)
* Digital Oscilloscope (2Hz to 50Khz)
* Current meter (0-10Amp, usable to 20Amp)
* Low and High Pass Audio Filter
* Selectable IF Filter (15Khz and 220Khz)
Picture 3: Here is the screen you see when the HP 8924C is turned on. We set the HP 8924C unit up with the POWERON feature so it always starts up on this screen and displays frequency in the first field. Same as the 8920B.
Picture 4 : This is the HP 8924C TX Test Screen - Same as the TX Test Screen on the HP 8920B.
Picture 5 : Here is the HP 8924C TX Test Screen with 61.6 watts input to the RF I/O Jack. You can input this power level with our opt 60 units. Same as the HP8920B.
Picture 6 : Here is the HP 8924C TX Screen with 114 watts input. You can input this power level with our opt 60 units Same as the HP8920B. The HP 8924C will warn you if you exceed 90 watts. We input 120 watts for 10 seconds without a problem.
Picture 7 : HP8924C RF Analyzer Screen is the same as the HP 8920B
Picture 8 : HP8924C RF Generator Screen is the same as the
Picture 9 : HP 8924C Signaling Encoder Screen. It will encode function generator waveforms, tone sequence, DTMF CDCSS (digital PL), digital paging, NMT, MPT1327 LTR and EDACS. Same as the HP8920B.
Picture 10 : HP 8924C Signaling Decoder Screen. It will decode
function generator waveforms, tone sequence, DTMF CDCSS (digital or DPL), digital paging, NMT, MPT1327 LTR and EDACS. Same as the HP8920B
Picture 11 : HP 8924C Spectrum Analyzer Screen. Same as the HP 8920B. It even has the adjacent channel power screen. This Spectrum Analyzer is identical to the HP 8920B unit.
Picture 12 : HP 8924C Oscilloscope Screen. Same as the 8920B.
Picture 13 : HP8924C Front Panel with opt 060 / 60 Watt input. Picture 14 : This is the HP 8924C Tracking Generator Screen shown sweeping an economy duplexer tuned to notch 470 MHz.
You can sweep a span from 1 - 1000MHz on this screen.
